Battery Rated Capacity | 280Ah | 314Ah | 320Ah | |
| DC | DC Rated Voltage | 1331.2V | ||
Maximum Charge/Discharge Rate | 1C | 0.5C | 0.25C | |
| DC Rated Energy | 3.72MWh | 5.01MWh | 5.11MWh | |
| Performance & Safety | DC Round Trip Efficiency @ Rated Power | 92.5% | ≥94.5% | |
| Battery Chemistry | LFP | |||
| Fire Suppression | Gas + Water Pipe + Blast panels | Perfluorohexanone | ||
Cooling Concept of Battery Chamber | Liquid cooling | |||
| Codes & Compliance | UL9540/UL9540A/CE/IEC/KC/KBIA | |||
Performance & Safety | Weight (Approximate) | 36T | 45T | 45T |
| Enclosure Dimensions (W*H*D) | 6058 × 2896×2438mm | |||
| Enclosure Rating | IP54/55 optional | |||
| Enclosure Fire Rating | ≥60min | |||
| Operating Temperature Range | -40℃~+55℃ | |||
| Operating Humidity Range | ≤95%RH | |||
| Noise Sound Pressure Level | ~80dB@1m(-65dB@1m as optional) | |||
| Working Altitude | 2000m | |||
| Software | Communication Interfaces | CAN, RS485, Ethernet | ||
Communication Protocols | CAN, Modbus RTU, Modbus TCP/IP | |||
Battery Energy Storage System
Promote the Transformation of the Energy Structure

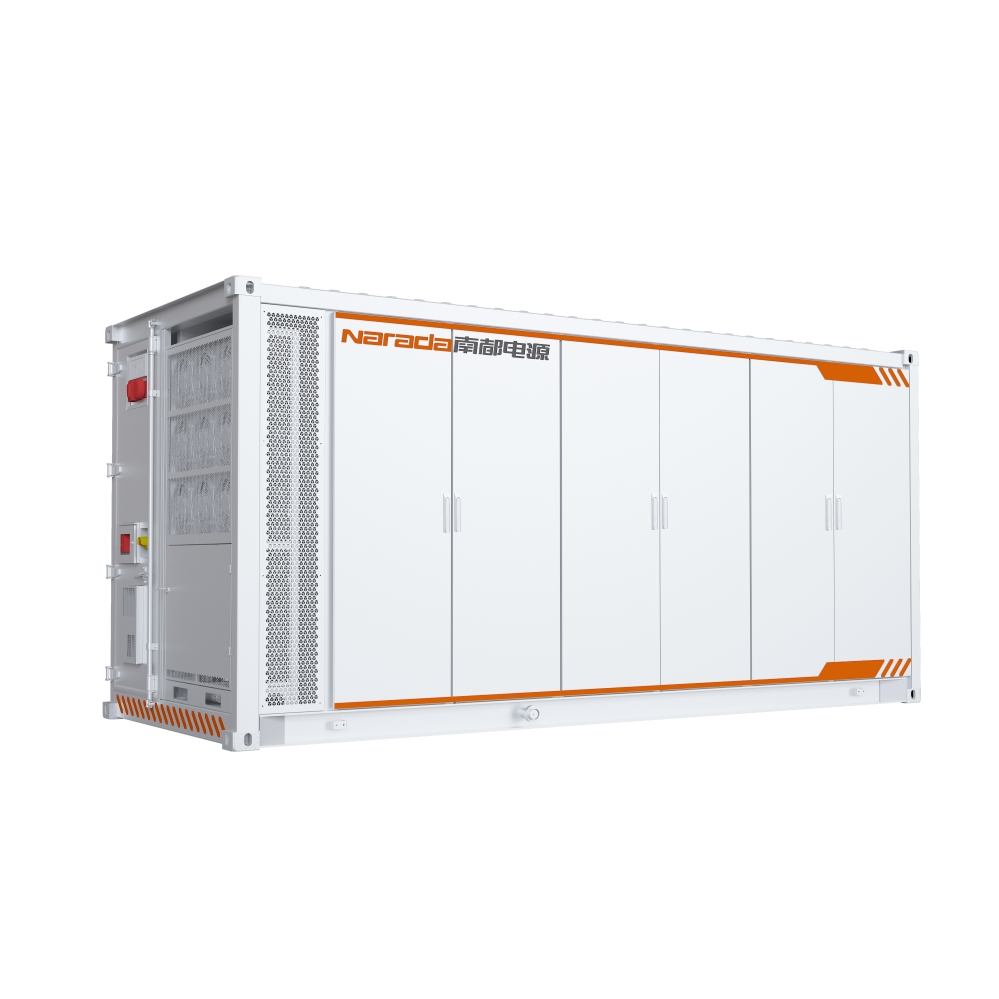

Center L Plus - 20ft Liquid Cooling Energy Storage SystemBack
Technical Advantages
•More Secure: Detects slight leakage of eletrolyte and coolant within. Automatic fire suppression triggered at PACK level.
•More Reliable: Reliable dual liquid cooling system that backups each other.
•Flexible Deployment: Factory preassembly, short lead time Low installation and commissioning cost.
•Ultra Long Life: System cycles more than 10,000 times Intelligent liquid cooling ensures the system temperature varies between 5℃.
•Intelligent Operation: Modular design, convenient operation & flexible maintenance. Digital technology, remote collaboration & intelligent monitoring.
•Environment Friendly: Enhanced option with premium noise mitigation ingenuity.
- Product Performance
